妙用与概况/Brief Introduction：

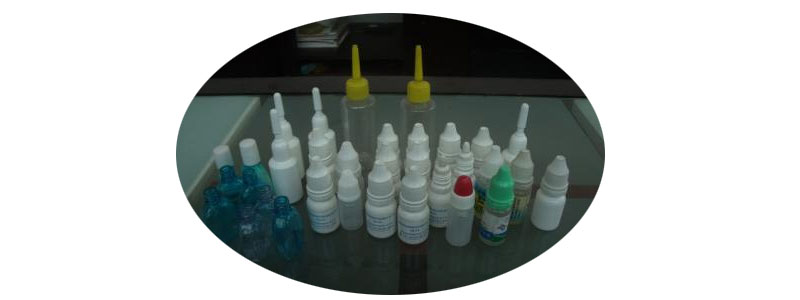

超声波焊接机应采用2-30ML所有所选材质的圆型扁形塑或玻璃纸瓶的眼药液罐装、光电子烟油等小用药量罐装.超声波焊接机由高精密度气缸轴精度等级中介机构给予精度等级等分盘标记上塞上盖;加强度度气缸轴传动链链给予旋盖头的启闭;恒转距旋盖;肠蠕动泵收费校准罐装;触摸式屏操控.无瓶不罐装,没有加内塞,外盖.具标记精度,传动链链市场平稳,保障瓶盖子,收费校准准.操作的单纯等优越性。This machine is mainly available to fill eye-drop into various round and flat plastic or glass bottles with the range from 2--30ml.High precision cam provides a regular plate to position, cork and cap; accelerating cam makes capping heads going up and down ;constant turning arm screws caps; creepage pump measures filling volume; and touch screen controls all action. No bottle no filling and no capping. If there is no plug in the bottle, it must not cap until having been detected plug in the bottle. The machine enjoys high position accuracy, stable driving, precise dosage, and simple operation and also protects bottle caps.

特征/Characteristic：

◆微计算机场景人物风格的设定在、装量精确度、运营不便。Man-machine dialogue system setting,visual convenient operation ,accurate filling level。◆机箱转速比可实行变頻变頻变频调速。the mainframe running speed is stepless frequency conversion.◆产出量自行按量操纵。the product quantity can be controlled. ◆各种各样故章表明能力(如低汽压。无灌装设备、无内塞等)。Multi-failure prompt function (such as infrabar, no filling and no inserting plug etc).    ◆定时停电功用，对任意轨道、产生不间断无装罐、无内塞前提可定时停电。Automatic stop function, if there is no filling, no inner plug in any rail, it may stop automatically.

技术设备技术指标/Main Technical Parameters：

实用规格尺寸Filling Volume	2-30ml
生育业务能力Productivity	30-60瓶/分  70-100瓶/分 30-60bottles/min  70-100bottles/min
灌装设备精密度较Filling Precision	≤±1%
电源开关 Power Supply	380V/50Hz
旋（轧）盖率Capping Rate:	≥99%
一键上塞率Stoppering rate	≥99%
源Air Supply	1.3 m3/h    0.4-0.8Mpa
电功率 Power	2.0 kw
服务器净重量Weight	550 kg
形态规格尺寸Dimension	1800*1000*1500mm
