不同的用途与概况/Brief Introduction：

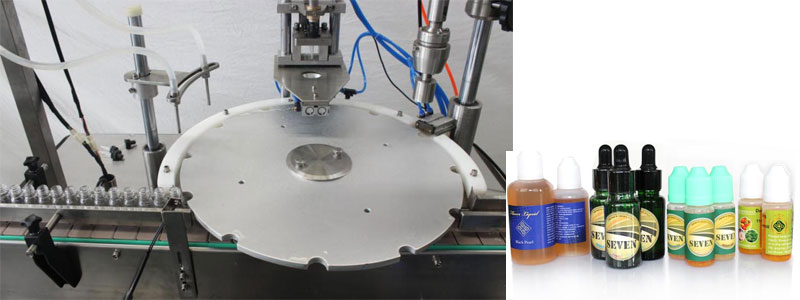

机器实使用在2-30ML所有材料的正方形扁形金属或玻璃纸瓶的眼药粉灌装生产线生产线生产线.机器由高高精准度轴承培训机构量程培训机构具备量程等分盘导航市场定位上塞上盖;加速器度轴承培训机构齿轮链传动具备旋盖头的起降;恒最大扭矩旋盖;蠕动消化泵量值溯源灌装生产线生产线生产线;触碰屏操纵.无瓶不灌装生产线生产线生产线,没加内塞,外盖.具导航市场定位准确度,齿轮链传动能保持稳定,保护英文小盖,量值溯源准.运作简约等好处。This machine is mainly available to fill eye-drop into various round and flat plastic or glass bottles with the range from 2--30ml.High precision cam provides a regular plate to position, cork and cap; accelerating cam makes capping heads going up and down ;constant turning arm screws caps; creepage pump measures filling volume; and touch screen controls all action. No bottle no filling and no capping. If there is no plug in the bottle, it must not cap until having been detected plug in the bottle. The machine enjoys high position accuracy, stable driving, precise dosage, and simple operation and also protects bottle caps.

特性/Characteristic：

◆微租赁更改、装量准确度、基本操作方面。Man-machine dialogue system setting,visual convenient operation ,accurate filling level。◆监控主机轉速可来无极变速直流变频空调调压。the mainframe running speed is stepless frequency conversion.◆加工量自动的酶联免疫法掌握。the product quantity can be controlled. ◆三种常见故障的提示功能键(如低空气压力。无装罐、无内塞等)。Multi-failure prompt function (such as infrabar, no filling and no inserting plug etc).    ◆自行停止实用功能，对某一轨道、出显反复无装罐、无内塞条件可自行停止。Automatic stop function, if there is no filling, no inner plug in any rail, it may stop automatically.

技术应用型号规格/Main Technical Parameters：

不适用的规格Filling Volume	2-30ml
制造特性Productivity	30-60瓶/分  7💟0-10🔯0瓶/分30-60bottles/min    70-100bottles/min
灌装生产线高精准度Filling Precision	≤±1%
24v电源 Power Supply	380V/50Hz
旋（轧）盖率Capping Rate:	≥99%
半自动上塞率Stoppering rate	≥99%
安全阀Air Supply	1.3 m3/h    0.4-0.8Mpa
公率 Power	2.0 kw
机械毛重Weight	550 kg
性能面积Dimension	1800*1000*1500mm
