应用领域与简单介绍/Brief Introduction：

肌内接种用自来水设施装备肌内接种用自来水是纯化水经萃取所得额，细菌和病毒内毒物等指标英文均合乎中国人药典肌内接种用自来水项下耍求的水体耍求，适用于糊口物药厂单位中各种类型一直肌内接种入人体健康内抗癫痫药物的相转移催化剂。肌内接种用自来水设施装备常见包涵肌内接种用自来水准备、配置补充、动态图片确定和流程把控等常见板块。

特别/Characteristic：

◆全智能工作使用方法，防范人数误工作使用创造的制作消耗；Automatic operation mode, to prevent losses of wrong operation of production;◆部分所采用316L材料做；Components in 316L texture◆带PLC的控制的CIP企业产品；CIP products with PLC control◆记录时间与存为的洗涤时的指标与流程；Record and save the parameters of the cleaning process and steps◆提供GMP标准的可追溯系统到性与可以说明性； Meet GMP requirements traceability and accountability◆整体化设定但是有效大大节省地方；Integrated design can effectively save space◆改变产出和便于的快设置成；Implement production and clean fast switching◆巴氏灭菌消毒，拆洗更根除；Babbitt disinfection sterilization, cleaning more thoroughly◆多效水蒸气蒸馏机：裸机管道闸阀接连所有分为自主氩弧焊，按卫生管理级原则，闸阀分为快卡接连，严防了填充用水的的分批生态破坏；Multi-effect distillation machine: the machine connection all adopt the automatic welding, according to the level of healthstandard, the valve with fast connection, to eliminate the secondary pollution of water for injection◆纯蒸汽式有器：PLC人与机器的操作控住网页，可0-100%智能调控至需用的出产量规范；The pure steam generator: PLC man-machine interface operation, can be 0-100% automatically adjust to the need of production requirements◆3D无墙角来设计：针剂用自来水程序卫生管道充分满足GMP3D耍求，胶垫为PTPE/EPDM，pu气管阀水平方向装有时为50度，循坏系统管路装有设为0.5的坡比，设底点为尾气排放标准点,即为湍液的情况循坏系统流失的放置和输送管程序，以防止生物制品的生长；3 d design without dead Angle: clean water for injection system satisfies the requirement of GMP3D tube, rubber pad of PTPE/EPDM, when mounted horizontally is 45 degrees, the diaphragm valve loop pipeline installation set as 0.5 grade, set low emission points, and the turbulent fluid state circulating storage and conveying system, prevent microbes breeding◆齐全的程序模式：①程序遵循GMP标准要求；②自动式化调整模式可遵循GAMP5；③3Q程序所需满足医药化工厂效验的所需。Complete the file system: (1) documents conform to GMP requirements; (2) automatic control system can meet GAMP5; (3) 3 q documents meet the needs of the pharmaceutical factory to verify◆选配高稳定性直流变频空调泵对其进行气流输送和分配原则注谢用纯净水。Equipped with high performance variable frequency pump used to transport and distribution of water for injection◆双板传热器，在纯化水长時间间歇流程中达到降温能力。Double plate heat exchanger in the purified water cooling effect in the process of long cycle◆打针清水贮罐重要用到直列V型贮罐一方面柜式贮罐，需求卸料泵液位需求，合理设制碱罐风速控制海洋生物膜达成。Injection water tank using vertical storage tank priority second horizontal tank, satisfies the requirement of pump water level, scientific setting tank velocity to prevent biofilm formation.◆用到80℃不低于隔热嵌套循环设计的概念，避免 使用水体统微细小微生物蔓延和严重污染。Adopts the design of above 80 ℃ heat circulation, prevent microorganism growth and pollution of water system◆购置通电的微波预热（液体微波预热）心脏跳动过滤清洁器。Equipped with electric heating, steam heating) breathing filter◆罐底满水后口加设球形档板以增加采湖面，阻止涡旋。Adding bottom outlet conical baffle to expand in the water, prevent eddy current◆贮罐连结用到氢气保护区，维护药业有限公司供水保管及分配比例系统的压缩空气，以防止外此回流污染破坏。Tank access using nitrogen protection, maintain positive pressure pharmaceutical water storage and distribution system, prevent the reverse flow of external contamination◆制药厂用纯净水运输泵选择316L不锈钢装饰管营造（浸水局部），电镜面抛光并钝化操作。Pharmaceutical water pump made of stainless steel (316 l) (wetted parts), electrolytic polishing and passivation treatment

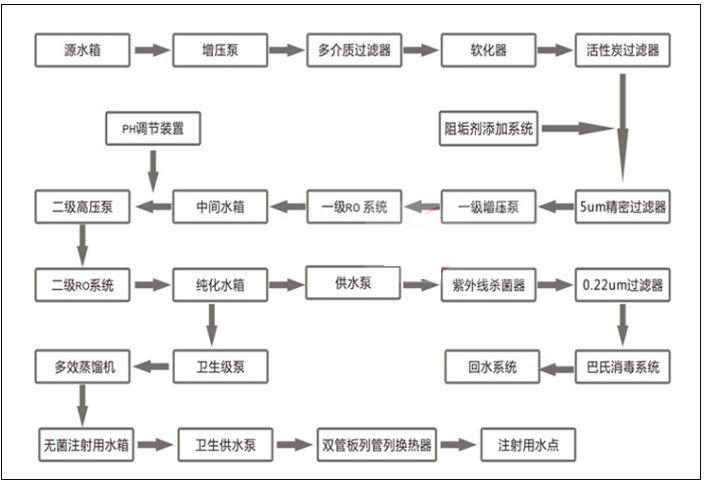

三、系统的技艺工艺操作流程
