作用与详细介绍/Brief Introduction：

机器是所代替服食液夹丝瓶子的新类产品，恢复充分解决了之前的服食液夹丝瓶子的无良效用。这一灌封机使用的塑瓶，显然不所需洗瓶机、烘干机机，更不所需清洁消毒，不错间接灌封。终端服务器全系统自动理瓶、进瓶、装灌设备，装灌设备量安全稳定的，无漏滴，无瓶不装灌设备。上盖、封口处率高达100%。此机工艺先进集体，面积小、启动安全稳定的、噪音污染低，实际操作维护、冲洗快捷等优缺点，充分包含GMP标淮。This machine is a new product instead of oral liquid bottles, thoroughly solved before the adverse effect of oral liquid glass bottle. The used plastic bottles, filling and sealing machine not only don't need to bottle washer, dryer, more don't need disinfection, can be directly potting. The machine is fully automatic unscramble bottle, bottle feeding, filling, filling volume stability, no LouDi, no bottle no filling. Cover and sealing rate can reach 100%. This machine technology is advanced, small volume, stable running, low noise, convenient operation and maintenance, cleaning, etc, in full compliance with GMP standard.注：本型号查询有中速和公路2种总产量供您选用。Note: this model has two kinds of low speed and high-speed production for your choice.

特征 Characteristic

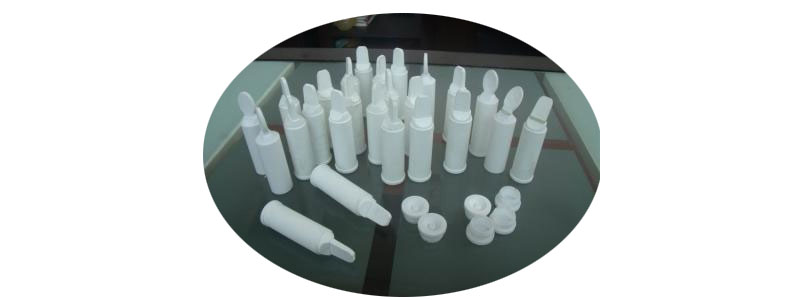

◆超声波焊接机可用在各种类型易折瓶服用液计量检验包装和粘口。The machine is suitable for all kinds of folding bottles of oral liquid filling and sealing of measurement.◆因此电器设备零件均应用著名品店牌。All electrical components adopt famous brand◆该机控制更直观非常方便，无瓶不装罐，计量校准*。It has intuitive and convenient operation, no bottle no filling, measuring precision.◆易折塑瓶灌封机的最主要型式与操作过程Easy to fold the main structure and principle of plastic bottle filling and sealing machine◆NFGFY型服食液易折泡沫塑料瓶子灌封机重要理瓶器、理盖器、主传动链系統、数据同步带空隙送小瓶置、瓶子检漏装备、包装医院、排除装备、热熔胶封医院、气动系统机诫手指头夹瓶医院、交流伺服发电机发电机空隙上瓶医院与出瓶医院等组合成。Type NFGFY oral liquid is easy to fold the plastic bottle filling and sealing machine main GaiQi bottle opener, and the main transmission system, the synchronous belt clearance to send bottle device, empty bottle leak detection device, filling body, eliminating device, hot melt sealing mechanism, pneumatic mechanical fingers bottle gap on the bottle structure, servo motor and a bottle of institutions, etc.◆器机采用的口服药液易折氟瓶子、盖不是定净化区制造的，能有泡脚药材允许证，因而瓶身与底盖经信息传递和"去外包装"后可一直进去到灌封间。经由理盖器、理瓶器的自己方向整里，删去选择性底盖及瓶身底口朝下的瓶，使方向后的包材喂料有技巧地进去到传输发展轨道中。Machine using oral liquid is easy to fold the plastic bottles, cover a certain production of clean area, should have the medicine packaging material license, so the bottle and the bottom cover after transfer and "outsourcing" can go directly into the potting. By Richard GaiQi, automatic directional arrangement of bottle opener, eliminate reverse bottom cover and the bottom of the bottle mouth bottle at the bottom, after making the orientation of packaging material feeding regularly into orbit. ◆专向后口服药液易折塑胶瓶在运送组件总排名Directional oral liquid after folding plastic bottles in conveying rail out easily

技木技术指标technical parameters：

型号model	NLGFY-40	NLGFY-80
装量范围图The load range	5-100ML
生产能力production capacity	20-40瓶/分	50-80瓶/分
封膜率Hot sealing intensity	》99%
装量误差值The load error	《1.5%
状态率damage rate	《1.0%
耗油率power	2KW	3KW
电源开关Power Supply	380V 50Hz/220V 50Hz
外形尺寸boundary dimension	2700*1100*1900mm	3000*1480*1900mm
体积 Weight	700Kg	800Kg
