借款用途与简价/Purpose and introduction：

NQGF型西林瓶粉针洗烘散装轧盖标贴一体化线 由QCL全类别落地多普勒彩超波洗瓶机、AQMR隧洞式暧风不断循环法过滤除菌真空烘箱、NQFGX全类别精机挤出机螺杆粉剂散装机、NQ-50轧盖机、NQWTB-120标贴汽轮机成，也可手机单机在使用。比较合适于7-25ml型号的西林瓶粉针的生产销售。能完全喷淋泵充水、多普勒彩超波粗洗、瓶侧壁水清理道路、瓶罐壁不间断首次不断循环法水清理道路、两次吹气、两次优质水清理道路、不间断首次吹气、瓶侧壁吹气、清理、发动机预热、烘箱过滤除菌去热原、蒸发、散装、加塞、轧盖、标贴等二十几个道工作。NLGF schering bottles booster injection wash baked repackaging rolling cover labeling line consists of QCL series vertical ultrasonic bottle washer, ASMR tunnel type hot air circulation oven. NFFGX series CNC screw powder filling machine, NF-50 rolling machine, NFWTB-120 labeling machine, and also can be used stand-alone. Suitable for 7 to 25 ml specification schering bottles of water production. Can finish the spray water injection, ultrasonic thick bottle washing, the outer wall of water flushing, bottle wall continuous secondary circulating water flushing, a blowing, a fresh water rinse, two consecutive bottle blowing, blowing the outer wall, preheating and drying sterilization to pyrogen, cooling, packaging, gasser, cover, labeling and so on more than 20 procedures.

作用/characteristic：

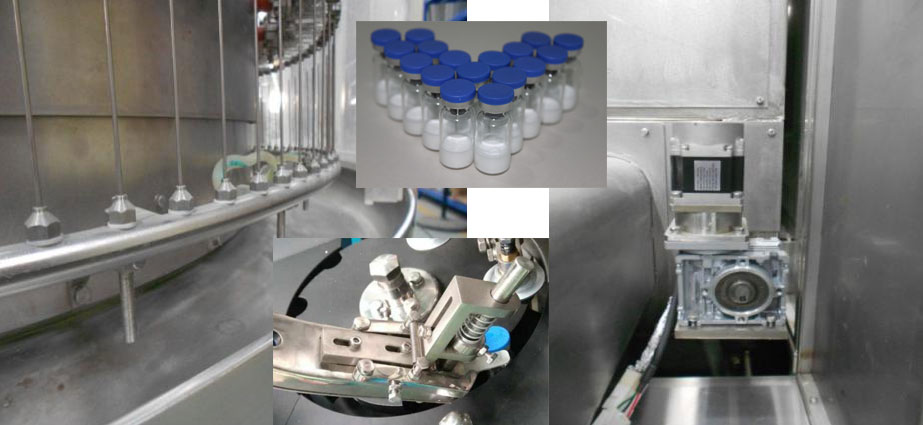

◆洗瓶机所采用厂家手夹瓶，常用许多种产品规格的西林瓶；Bottle washer adopts manipulator clamp bottle, is suitable for a variety of specifications of schering bottles;◆洗瓶主要采用雾水喷针循环往复跟踪定位放入途径，冲洗成果好，浪费能源资源。并设立针架防颤动保护装置，上升喷针放入空瓶的精确性度，缩短断针的现象的发生；Reciprocating mixer washing bottle with water spray needle track insert way, cleaning effect is good, save energy. And is equipped with needle shake device, improve the accuracy of injection needle inserted into the bottle, reduce breakage phenomenon;◆洗瓶全部整个水蒸气管线、喷针截然孤立拆开，尽量避免了平行环境破坏，合适GMP正确规范要求；Mixer washing bottle the water pipe, injection needles completely separate, to avoid the cross contamination, in line with the GMP requirements;◆洗瓶机进瓶螺旋轴前还可以加装防护块，有防护螺旋轴，极大减少碎瓶意义；Pieces into the bottle inside the screw before adding buffer block, protect the screw, reduce broken bottle;◆洗瓶机出瓶选用综合进口货微信同步带，联系拨瓶块气力输送机西林瓶，运动不稳定性能信；Pieces out of the bottle inside the whole import synchronous belt, the connection dial the bottle conveying schering bottles, operation is stable and reliable;◆烘干箱利用暖风循环法热处理，温度表粗糙，节水；Oven adopts hot air circulation heating, temperature uniformity, energy saving;◆烤箱包括防莫名其妙关闭电源保护性功能键。运作安全可靠；Mixer oven has suddenly loses power protection function. Run security;◆真空烘箱可配无限循环水冷散热提升装置，不损耗量卧室风速，避免卧室的压力不稳定性的的风险减温目的好；Mixer oven can match circulating water cooling device, not loss room air volume, reduce the risk of differential pressure imbalance in room cooling effect is good.◆烘干箱可配风压力差自动式取舍调模式限制空间和烘干箱的风压力差不取舍产生的持续高温段偏斜，装灌间洗烘间体温升职业技术一产品系列的问题；Mixer automatic oven can match differential pressure balance control system to reduce the room and high temperature oven pressure difference caused by the imbalance of period of migration, filling between wash between baking temperature and so on a series of problems;◆烘烤箱可设DOP检查端口(包含气压、空气流速、埃尘颗粒检查口)；Mixer oven with DOP test interface (including wind pressure, wind speed, dust particle detection);◆真空烘箱保压段可带线下灭菌处理功能模块(FDA特选)；Mixer oven cooling segment with the function of sterilization (FDA selected);◆烘烤箱网带可带多普勒彩超遍布CIP线上擦洗体统；Type mixer oven mesh belt with ultrasound scanning CIP online cleaning system;◆烤箱内腔室可对其进行全定位、多视场角高压电水擦拭；In pieces inside the oven chamber can be all-round, multi-angle high-pressure water flushing;◆灌装机适用国.际更先进性的结构设计的核心理念，存在极速度慢，同时分瓶精准，换掉金桥铜业跨接线的截面积大小件不方便；Mixer racking machine adopts the most advanced design concept, high speed, and bottles of accurate, replacement of a convenient;◆分开装袋机适用讨论会台达伺服直流无刷电机直流无刷步进电机控制软件分开装袋螺旋轴拖动，装量精度；Mixer racking machine adopts ac servo motor drive the repackaging screw rotation, the load accurately;◆散装机用到装量的进行调节立即在摸屏上实行；Mixer packer adopts the load adjustment directly on a touch screen;◆包装机可以选择配百级循环往复式层流罩；Mixer packer optional circulating laminar flow hood best level;◆分开装袋机无瓶终止分开装袋，无瓶没有加塞功能模块。Racking machine without stop packing bottle, no bottle no stoppered function.◆整线选择PLC总操纵、直流伺服驱动器、触控屏操纵技木，正常运动动态稳定耐用。触控屏可表明各单机版的正常运动的情况，各操纵点的水位、汽压、压力、温等表明，各调整开关的情况和内部系统错误代码表明，内部系统错误代码个人确诊和内部系统错误代码阐述及是排除方案。使整个的分娩全过程满足自主化操纵，联线有自动化稳定装备，要确保分娩匀衡耐用。The whole line adopts PLC control, inverter, touch screen control technology, stable and reliable running. Touch screen can display the running state of each units, each control point of the water pressure, air pressure, air pressure, temperature, etc, according to the switch state and fault display, fault self-diagnosis and fault analysis and elimination method. Make the whole production process automation control, on-line has the automatic balancing device, ensure production equilibrium is reliable.不同企业的要，还可供选型：According to the needs of customers, but also available for selection:◆simens、施耐德开关、三凌、台达等国际品牌掌握模式；Pieces of Siemens, schneider, mitsubishi, Taiwan brands such as control system;◆水、气压强、水的温度及mri波挠度、污物塑料颗粒、风速等级免费在线验测、报案、纪录、打印出软件系统；Pieces of water, gas pressure, water temperature and the intensity of ultrasonic, dust particles, wind speed on-line detection, alarm, record and print system;◆ORABS、CRABS、没有细菌防护器整体。ORABS, CRABS, aseptic isolator system.

方法基本参数：/technical parameters

尺寸 model

生产的力production capacity

洗瓶合格达标率Washing bottle percent of pass

洗瓶开裂率Washing bottle breakage

消毒溫度sterilizing temperature

分开包装精度The repackaging of error

加塞良好率率Gasser percent of pass

的空气层流洁净间度Laminar air cleanliness

真空度抽速Vacuum pumping speed

电阻量 capacitance

外接电源power supply

总电池容量Total transmission energy

外貌规格boundary dimension

7-25ML国家标准西林瓶 7-25ML GBvial

300瓶pcs/分min ～600瓶pcs/分min

≥99%

≤0.1%

300℃-350℃

≤±3%(0.1-10h)

≥99%

100级100c

25m3/H(外配)100cbm/H ～50m3/H(外配)100cbm/H

96kw～235.5kw

380v,50HZ

约 8200KG

约 2000×1750×2370mm
